Heavy Duty Transmission Shift Seats

No reviews

Options: Red Shift Seat
Price:
Sale price$12.99

Description

It's common for the factory shift lever ball seat to wear, crumble and disintegrate over time. This often results in a sloppy or loose transmission shifter. The factory seat is soft so it can be squeezed into position. We took a different approach, and machined groves into the sides of our heavy duty seats. Instead of squeezing the seat into place, the groves on each side allows ours to rotate into it's final position. This allows us to make our seat from stronger, longer lasting USA-made Delrin. Our new heavy duty seats will far out last the stock units and will reduce shifter slop. Two different sizes, one size fits W56-A and W56-B models, the other fits all other 4WD applications as well as all Toyota Celica's and Supra's.

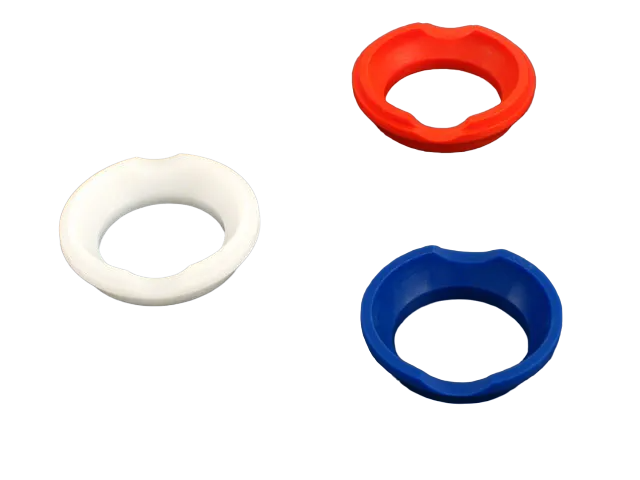

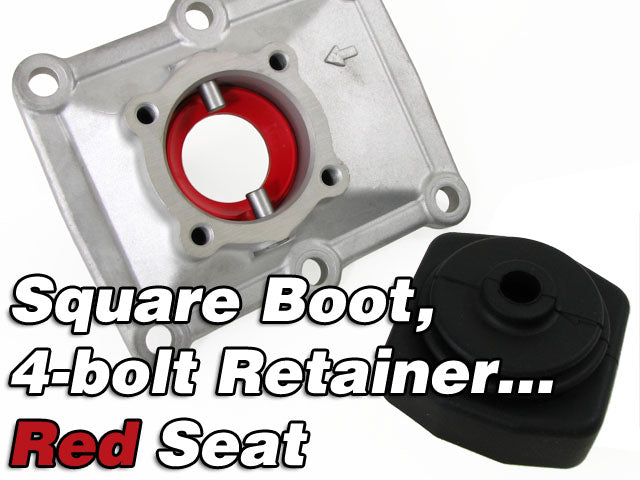

The Red seat is for W56-A and W56-B Toyota transmissions.

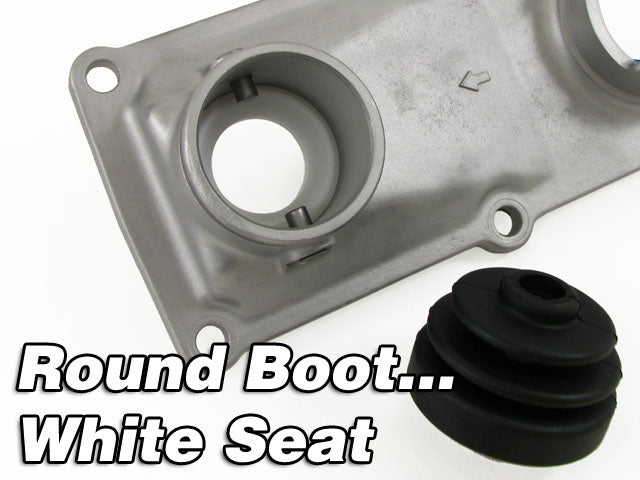

The White seat is for most other 1981 and newer common Toyota transmission applications with a direct top-mounted shift level, such as L-, G-, W-, and R-series transmissions including the new 6-speed RA60 transmission.

The Blue seat is for the forward shift style transfer case shift handle base of a transmission, such as a G52, G54, W56-C, W56-D, W56-E, R151F, and 1988-95 R150F applications with forward shifting transfer case shift bases. It also fits top shifting chain drive transfer case shift bases.



Don't forget to replace your Shift Socket and Shift Boots at the same time!



Application Color
  • 1985-1988 W-series (W56-A, W56-B)
  • Early style R154



Red Seat
  • 1981-83 L-series (L45, L50, L52)
  • 1984-95 G-series (G52, G54, G58)
  • 1989-2004 W-series (W56-C, W56-D, W56-E, W59)
  • All 1986+ R-series (R150F, R151F)
  • All 2005-2015 RA-series (6-speed RA60F)

Additional notes:

In general, this fits all 1981 and newer manual transmission Toyota 2WD and 4WD trucks, including T100s, Tundras, Tacomas, FJ Cruisers, and 4Runners, but excludes the 1985-88 W56-A/B (uses red seat listed above).
Also fits rear wheel drive Cressida's, Celica's & Supra's!
White Seat
This is our H.D. Transfer Case Shift Handle Seat
  • Forward shifting style t/case seat
    • Where the t/case handle mounts atop the transmission
    • Found atop G52, G54, W56-C, W56-D, W56-E, R151F
  • Top shift chain drive t/case seat
    • Where the t/case handle mounts atop the t/case itself
    • Found behind G58, W59, R150F
Blue Seat

Please use these two tables to identify what style Toyota transmission you have:



Model Year Model Year
L43 1979-80 (20R) L45
1981-82 (22R)
L50 1981-82 (22R) L52
1983 (22R)
G52
8/1983-5/85 (22R) G54
6/1985-88 (22R)
G58
1989-95 (22R-E)
W56-A
1985 (22R-E) W56-B
1986-88 (22R-E)
W56-C
1989-91 (22R-E) W56-D
1992 (22R-E)
W56-E
1993-95 (22R-E) W59
1995-05 (2/3RZ-FE)
R151F
1986-87 (22R-TE) R150F
1988-95 (3VZ-E)
R150F
1995-05 (5VZ-FE)
Transmission Input Bearing Number
L43 6207N
L45 & L50
63/32N, 032-2
L52 B32-14UR, 32BC08S1N
G52
B32-14UR, 32BC08S1N
G54 & G58
32TM03NX, 32BCS4-2NSLN,
32BCS8-2MT2N
W56-A, B & C
6307-N, HR6307-N
W56-D & W59
35TM11UR, 35TM11NX1
R150 & R151
DG4092, 4OTM05, 040-1,
35TM03





If your transmission is not listed, don't despair! While we cannot guarantee if our seats will fit other applications, they have been found to fit other applications based on the bore diameter of your transmission's shifter base: Our Blue seats are designed for a 39mm bore, our Red seats are designed for a 41mm bore, and our White seats are designed for a 42mm bore.

* Application Disclaimer: If you are experimenting with a transmission we did not design our seats for, that's great! But be aware that if you order one & find it doesn't fit, you will be subject to a restocking fee if returned.
