Description

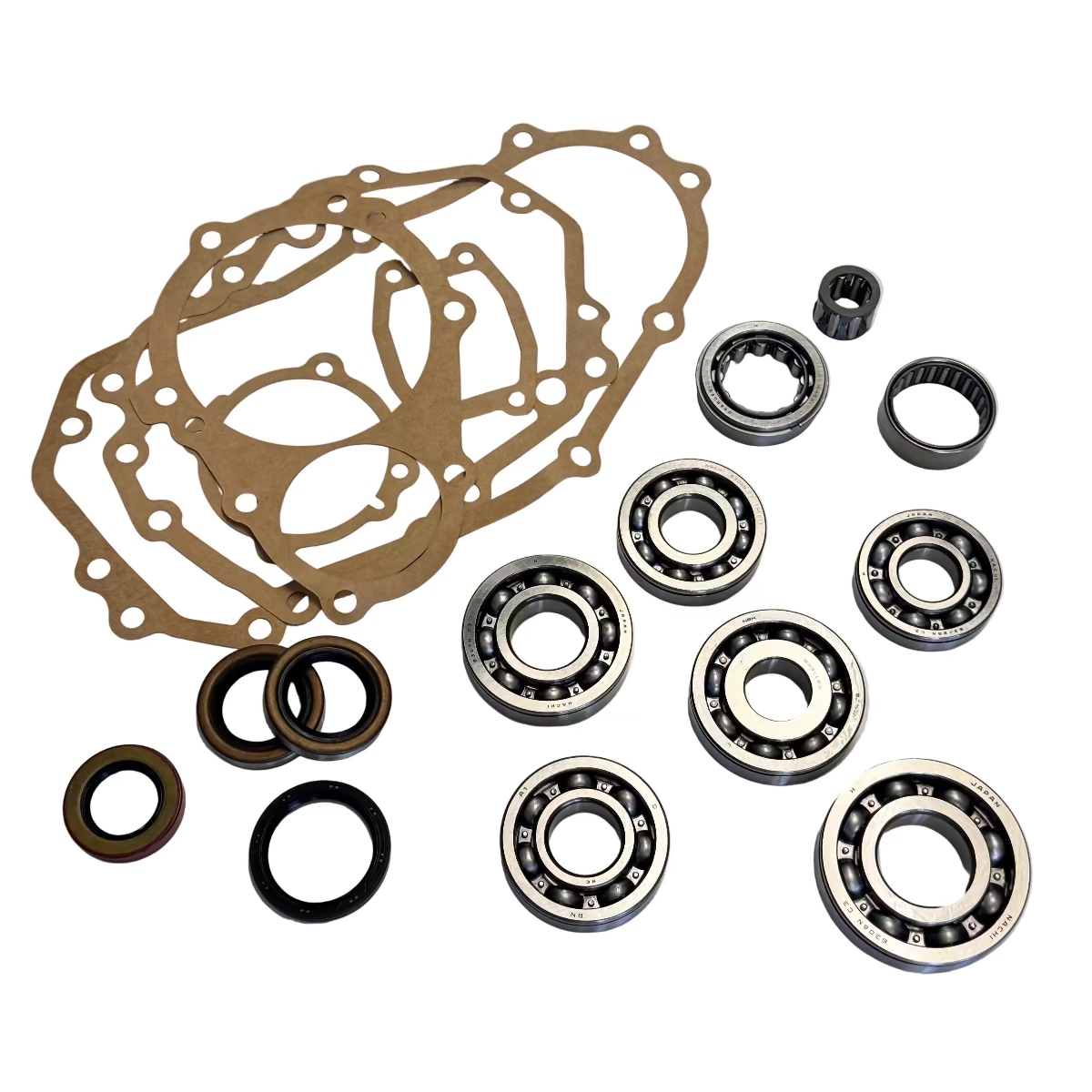

Toyota RF1A gear drive transfer case bearing kit. Fits all 1979-1995 RF1A transfer cases found in 4CYL manual transmission trucks and 4runners.
Does not fit V6 trucks.
Does not fit automatic transmission trucks.
Does not fit 89-95 22RE 4runner with G58 transmission and chain drive case and ADD.
Does not fit 89-95 22RE Truck with G58 transmission and chain drive case and ADD.
Includes:
- Most bearings for your RF1A Transfer case.
- Gaskets
- Oil pump seal
- Output seals
- 21 Spline transmission output seal

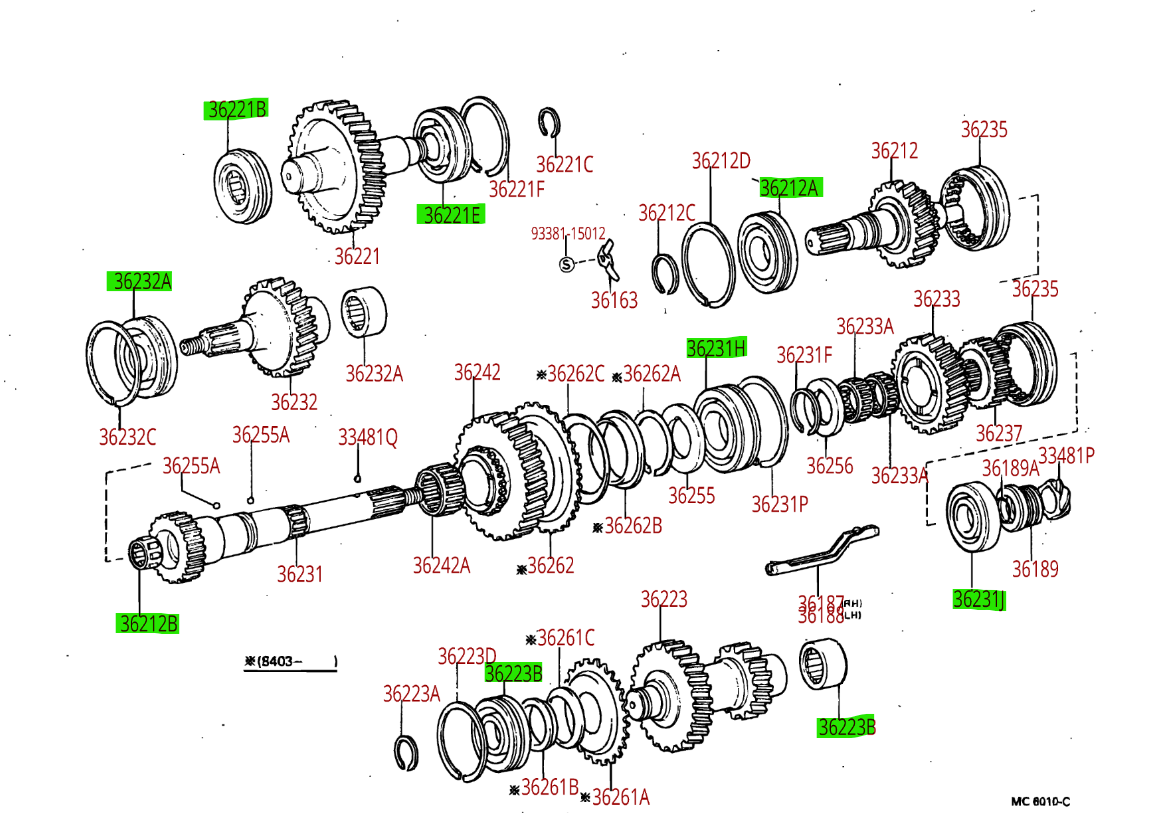

Contains the following bearings (as highlighted in the diagram):
| 36212A | Input Gear Bearing | 6307N C3 |
| 36212B | Input Pocket Bearing | Toyota P/N: 90364-19043 |
| 36223B | Countershaft Needle Bearing* | BTM4520A |
| 36223B | Countershaft Bearing | 63/32N |
| 36221B | Idler Shaft Roller Bearing | 038RUSS1 |
| 36221E | Idler Shaft Ball Bearing | 6306N C3 |
| 36232A | Front Output Shaft Bearing | 6307N B30-120 C3 |
| 36231H | Rear Output Shaft Inner Bearing | 63/28N |
| 36231J | Rear Output Shaft Outer Bearing | 6308N |
*BMT4520A is the same needle bearing used for the front output shaft. This kit includes 1. If both are needed, an additional can be purchased HERE
