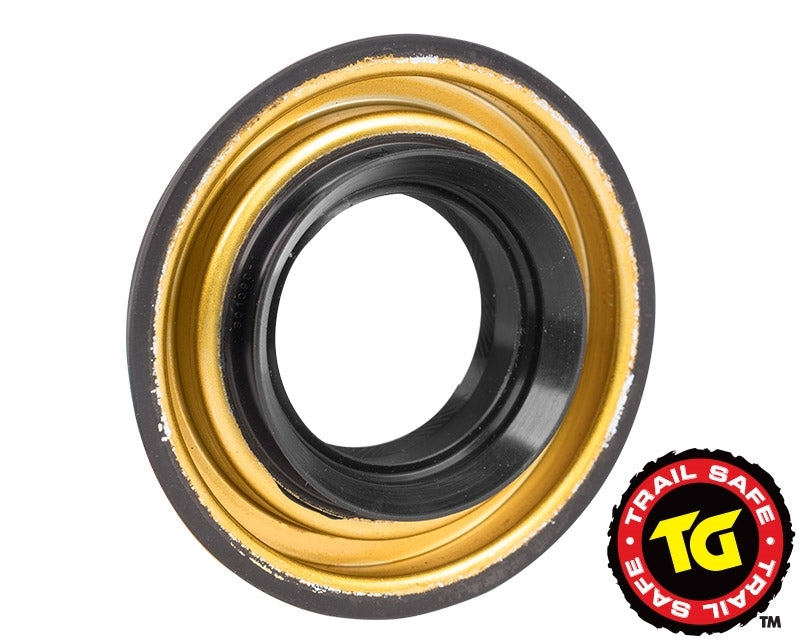

Trail-Safe™ Toyota 29-Spline Pinion Seal
Tired of dealing with oil leaks from your pinion gear? Trail-Gear has remedied that issue by offering our new Trail-Safe™ 29-Spline Pinion Seal. The Trail Safe™ 29-Spline Pinion seal lip is totally supported by a garter spring applying constant force over the full 360° circumference. This prevents any deflection gaps and stops oil from bypassing the seal lip. The outer seal lip acts as a secondary seal and keeps debris and other contaminants away from the inner seal lip.
The O.D. of the Trail Safe™ Seal is 100% coated with high-temperature polyacrylate rubber so that it forms a complete static surface seal resulting in zero leaks and maximum longevity. The outer flange prevents the seal from being pushed too far into the differential housing. This is by far the most effective pinion seal on the market, and will help you keep your favorite trails free of oil.
This seal is a direct drop-in replacement for Toyota P/N 90311-41009.
Note: Will not fit 27-spline pinions.
Specifications:
- Supported by a garter spring applying constant force over the full 360 degree circumference. This prevents any deflection gaps and stops oil from bypassing the seal lip
- Seal lip acts as a secondary seal and keeps debris and other contaminants away from the inner seal lip
- The O.D. of the Trail Safe™ Seal is 100% coated with high-temperature polyacrylate rubber so that it forms a complete static surface seal resulting in zero leaks and maximum longevity
- The outer flange prevents the seal from being pushed too far into the differential housing
Application Data:
- 1979-1995 Toyota Pickup 4WD 4cyl/V6 Diffs with 29-Spline Gears
- 1985-1996 Toyota 4Runner 4WD 4cyl/V6 Diffs with 29-Spline Gears
- 2002-2016 Toyota 4Runner
- 2007-2014 Toyota FJ Cruiser
- 2002-2007 Toyota Land Cruiser
- 2002-2016 Toyota Tacoma
